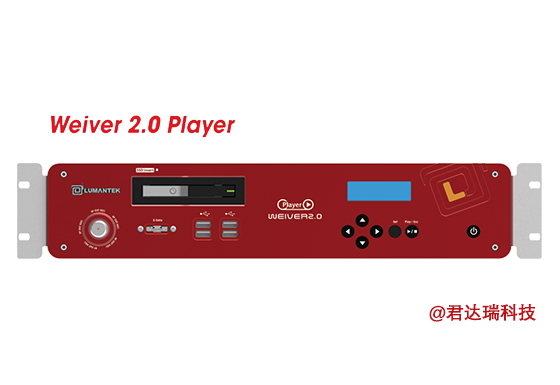

Weiver 2.0 Player可以播放Weiver 2.0預先錄制的IQ信號，錄制范圍覆蓋100KHz至2.7GHz的頻率，最大帶寬56MHz。
您若對該產品感興趣，歡迎通過電話或微信公眾號進行進一步溝通、查詢！
支持播放全球多種標準： DTV (FM, AM, ATSC, DVB-T/H, DVB-T2/S2, DVB-C, DMB, CMMB, DTMB, ISDB-T/B, OpenCable, and ATSC 3.0), Radio Broadcasting ATV (NTSC, PAL), RDS, TMC, LTE, Wifi. WeiverPlayer 支持 GPS信息，可用于準確定位信號。
100 KHz to 2.7 GHz, Max 56 MHz Real time Bandwidth playback

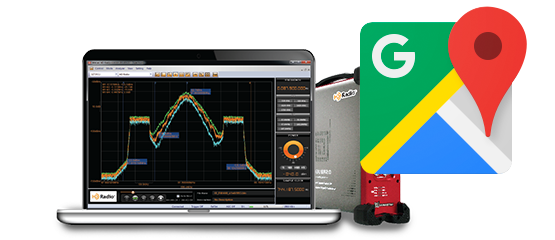

The 'Signal Tracer' based on API of the Google map traces information on RF recorded area, RF power for each location, and vehicle speed.

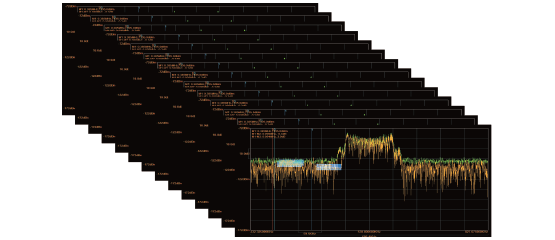

The world's first 3D Spectrum Analyzer, user may observe long tail sequence of a spectrum at any angles via mouse.

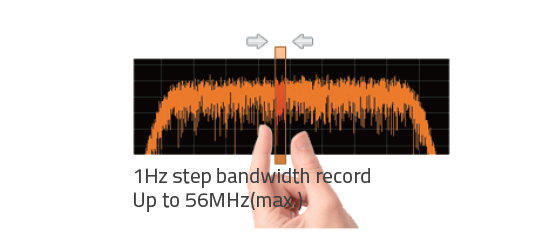

A unique, Lumantek's patented technology embedded testing equipment with freely adjustable Bandwidth capability by 1 Hz step.
Tech Specs
| Frequency | |
| Frequency band | 0.1 to 1 GHz |
| Frequency resolution | 1Hz step |
| Freq. Stability vs. Temp. | ±20 ppb max. |
| Daily Aging | ±1 ppb max. |
| Aging (PER year) | ±50 ppb max. |
| Spectral Purity | |
| Phase Noise @ 1 KHz offset | ≤ -100 dBc/ Hz (30 MHz) |
| ≤ -95 dBc/ Hz (1 GHz) | |
| ≤ -90 dBc/ Hz (2.7GHz) | |
| Phase Noise @ 10 KHz offset | ≤ -105 dBc/ Hz (30 MHz) |
| ≤ -100 dBc/ Hz (1 GHz) | |
| ≤ -95 dBc/ Hz (2.7GHz) | |
| Spurious Responses | |
| 2nd Harmonic | ≤ -50 dBc |
| 3rd Harmonic | ≤ -60 dBc |
| Other | ≤ -60 dBc |
| RF Output characteristics | |
| Gain Range | -30~+30dB (Input Level Basis) |
| Amplitude Resolution | 0.1dB step (Min.) |
| Amplitude Accuracy | ±1dB |
| power |
0dBm max. (48 to 2700 MHz) / + 10dBm max. (0.1 to 48MHz) |
| RF Output | |
| RF Output Port | 50ohm, N type female, DC-coupled |
| Max. DC input | ±25 VDC max. |
| Max. Reverse RF Power | 1W (Max.) |
| Environment | |
| Operating Temperature | 0 to +50°C |
| Relative Humidity | 90% |
| Storage temperature | -20 to +70 °C |
| Physical Features | |
| Dimensions | 478mm(W) x 88mm(H) x 462mm(D) |
| Weight | 7.5 kg |
| Power Consumption | 70W |
